Prefab Steel Framing Shed

Description:

Steel structure shed can be widely used for small garden warehouse shed, private garage shed, large poultry farm shed for cows, chicken, or some shed of airport, hotel, school, supermarket and petrol station.

inquire Now
Product Information


It can be smaller size with lighter materials, such as light gauge steel, corrugated steel sheet and PC sheet; or large size built by section steel material, sandwich panel, even concrete and brick. All the component will be prefabricated in our factory in advance, customers only need connect and assemble them as our drawing, can be finished very fast and easy.


Prefab Steel Structure Framing Shed House

Steel structure warehouse

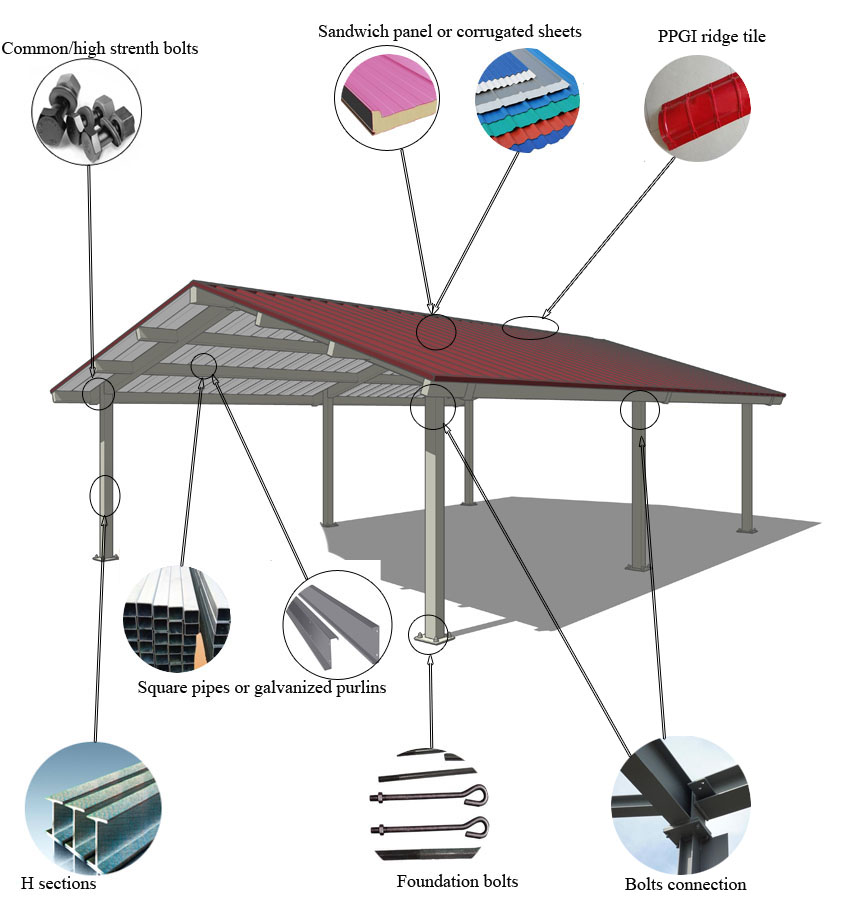

Main frame: Q345, Q235, Q345B, Q235B etc Welded H section steel column and beam with 2 times mid-grey anti-rusting painting

Secondary frame: Galvanized C purlin, tie bar, brace, roof and wall support

Bolt: Anchor bolt, High strength bolt, Ordinary bolt

Roof and wall:

a) Color-coated corrugated steel sheet;

b) Rock Wool Sandwich Panels;

c) EPS Sandwich Panels;

d) Glass wool Sandwich Panels

e) Skylight panel is used for day lighting

f) Other materials as customers’ request

Surface of structure: Hot dip galvanized or anti-rust painted

Drainage System: Galvanized gutter and PVC downspout

Connection: Welding connection or bolt connection

AccessoriesFlashing, ridge tile, screw and so on

Crane: 5MT, 10MT, 15MT and more

Packing: Standard seaworthy packaging or customized

* In order to give you an exactly quotation and drawings, please let us know your request length, width, eave height and local weather. We will quote for you promptly.


Prefab Steel Structure Framing Shed House

Advantages

·Super Aseismatic

 part of the structure will be consist of cold formed steel members, this system aseismatic grade can reach to 8.

·Durable

The steel material will be painted or galvanized as customers’ requirement to be more anti corrosion and rustproof, then lifespan of the structure can be reach to 50-70 years.

·Environment Protection

Little waste for pollution in construction, 100% steel structure materials can be recycled,of other related materials also can be recycled.

·Easy and Fast Build

Dry construction, will not influenced by the weather and environment, save much time and labor cost. One 300m2 steel structure building, can be finished in 30 days by only 5 workers. Light gauge steel framing can be much faster than this.

We have professional and normalized design team, we can customize and produce as customers’ drawing, also can design based on your requirement.
