Low Cost Steel Frame Warehouse

Description:

Features

1) Cost saving and transportation convenient, customer design available.

2) The main beam and column are qualified steel.

3) The steel structure makes the house resisting heavy wind of 140km/h and 8 grade earthquake.

4) Good ability to assemble and disassemble for several times without damage.

5) Widly used in construction site,office building,dormitory etc.

6) Environmental protection effect is good.

inquire Now
Product Information

Steel structure building is a popular type of building system now, its main load-bearing members are made of steel, including column, beam, foundation and roof truss, while roof and wall using variety of materials, such as sandwich panel, steel sheet, wire mesh, foam cement board, ALC board for different building application.



It widely use for steel framing farm warehouse, storage house, prefab steel structure warehouse for machines, logistics, trucks and so on. It can be built very fast and will not influenced by weather, steel material also will be more durable than traditional construction and the total cost is more competitive. Certainly steel structure building also can be combined with concrete or bricks to meet different customers' different requirement.

ocelova-montovana-hala-vizualizace.pngCroppedImage700450-Industrial-with-Style-Warehouse.jpg

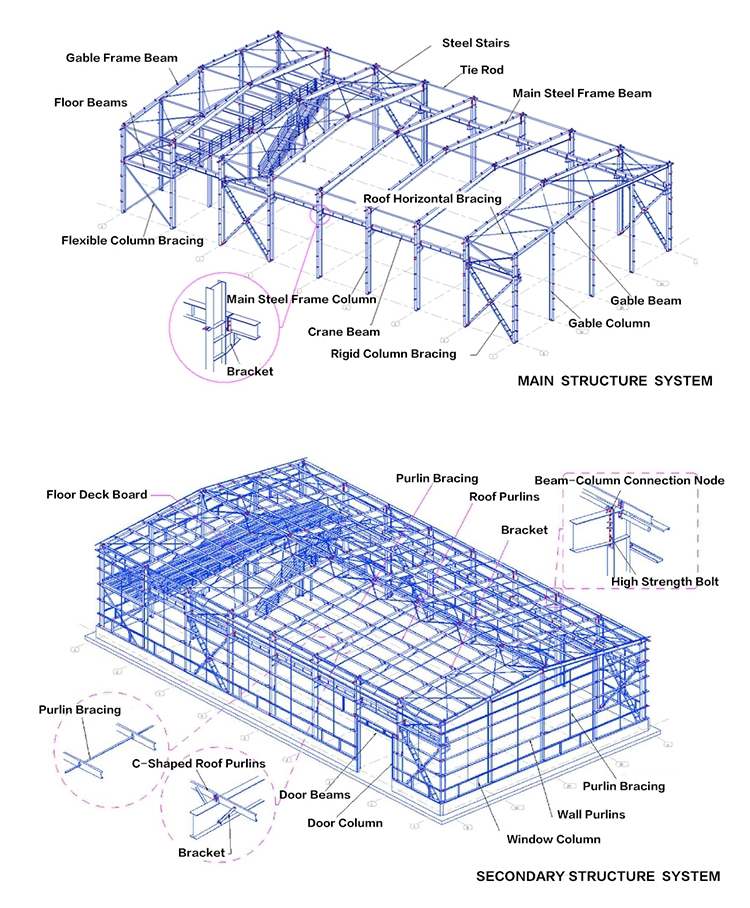

Steel structure warehouse

Main frame: Q345, Q235, Q345B, Q235B etc Welded H section steel column and beam with 2 times mid-grey anti-rusting painting

Secondary frame: Galvanized C purlin, tie bar, brace, roof and wall support

Bolt: Anchor bolt, High strength bolt, Ordinary bolt

Roof and wall:

a) Color-coated corrugated steel sheet;

b) Rock Wool Sandwich Panels;

c) EPS Sandwich Panels;

d) Glass wool Sandwich Panels

e) Skylight panel is used for day lighting

f) Other materials as customers’ request

Surface of structure: Hot dip galvanized or anti-rust painted

Drainage System: Galvanized gutter and PVC downspout

Window: Plastic steel or Aluminum Alloy

Door: Sliding Door or hangar door

Connection: Welding connection or bolt connection

AccessoriesFlashing, ridge tile, screw and so on

Crane: 5MT, 10MT, 15MT and more

Packing: Standard seaworthy packaging or customized

* In order to give you an exactly quotation and drawings, please let us know your request length, width, eave height and local weather. We will quote for you promptly.




Advantages

·Super Aseismatic

part of the structure will be consisted of cold formed steel members, this system aseismatic grade can reach to 8.

·Wind Resistance

Steel structure building has the performance of high strength, solid rigidity and good deformation capacity, can resist strong wind for 50m/s.

·Durable

The steel material will be painted or galvanized as customers’ requirement to be more anticorrosion and rustproof, the lifespan of the structure can be reach to 50~70 years.

·Heat Insulation

Sandwich panel can improve the insulation performance of the building, effectively avoid the phenomenon of “cold bridge” wall

·Environment Protection

Little waste for pollution in construction, 100% steel structure materials can be recycled, of other related materials also can be recycled.

·Easy and Fast Build

Dry construction, will not influenced by the weather and environment, save much time and labor cost. One 300m2 steel structure building, can be finished in 30 days by only 5 workers.

·Wide Application

Applicable for factories, warehouses, office buildings, residential apartment, gymnasiums, hangars, poultry farm and so on. Not only suitable for single-storey long-span buildings, but also can be used for multi-storey or high-rise buildings.

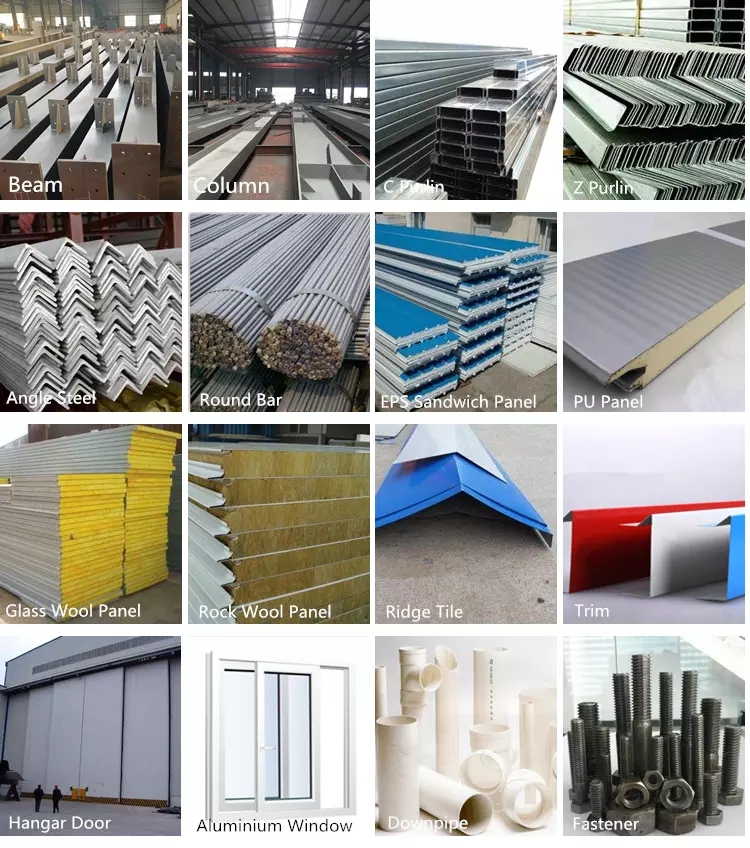

Main Materials

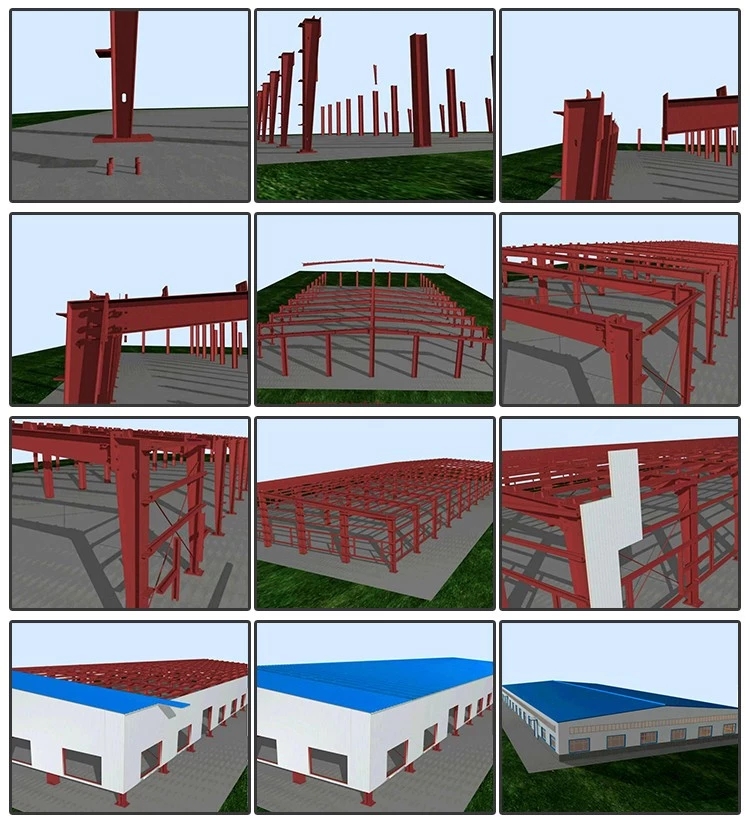

Build Process
