Building area: 46,920 sqm

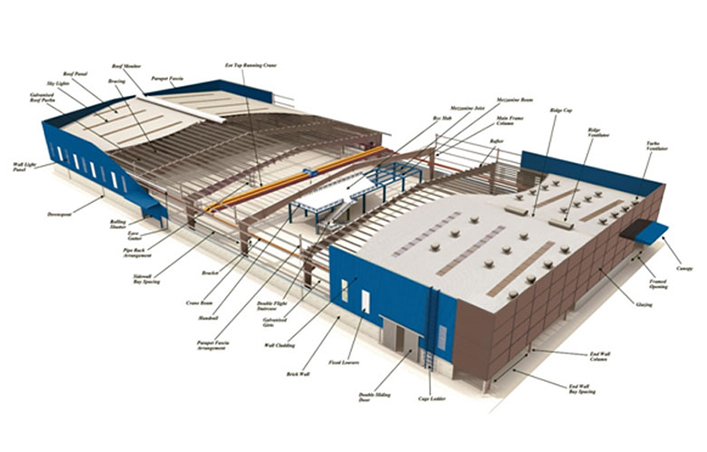

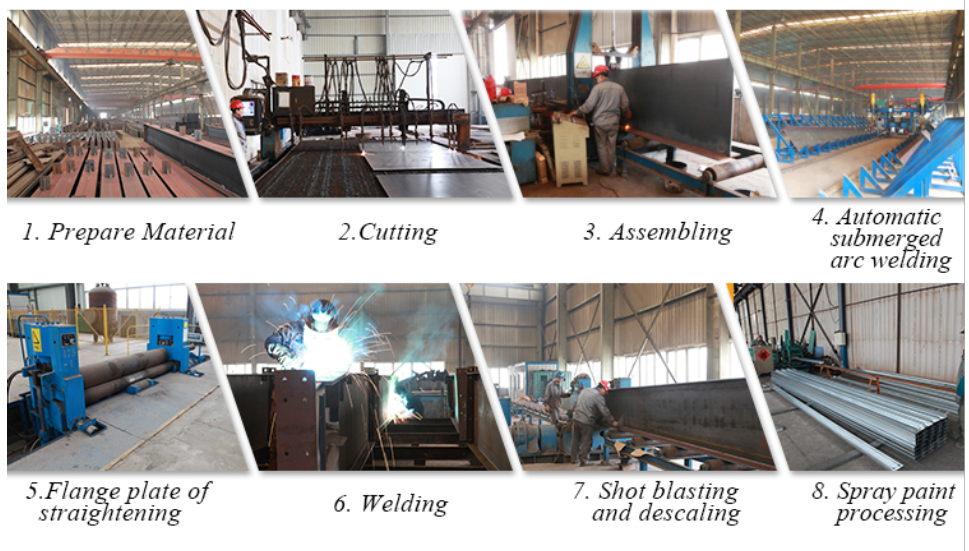

Portal steel structure are widely used to build a industrial warehouse or plant. The main steel structure is prefabricated in Hebei Weizhengheng Modular House Tech. Co., Ltd., who has over 20 years experiences in steel framing production and sell.
1 Frame: Q235B Welded H beam and H column, surface with shot blasting treatment, and then painted with fireproof and anti-rust epoxy zinc rich paint. Life span min 50 years
2 Purline: Q235B Galvanized C200*140*80*20 C profiles, which are widely used for wall and roof to support the panels
3 Frame accessories: high strength bolt, anchor bolt, common bolt, which are Q235B M12~M24
4 Roof panel: 75MM thick eps sandwich panels with over-lap connection, which is 100% waterproof and uv-assistant; we have option choice for the core material, such as fiber glass wool, rockwool, pu etc, which will depends on different weather condition or client requirements.
5 Wall panel: 50mm thick eps sandwich panel with tongue and groove connection. Color is white steel, pure and beautiful. If you don’t need insulation, you can also choose steel sheet as wall.
6 Front curtain wall: glass curtain wall with glass, which makes the building more modern and beautiful.
7 window: pvc glass window
8 Door: automatic rolling door
9 Accessories: Gutter, drainage pipe, corning/front flashing, screws, etc are all included into price.we are steel structure warehouse wholesale,we can guarantee quality.
