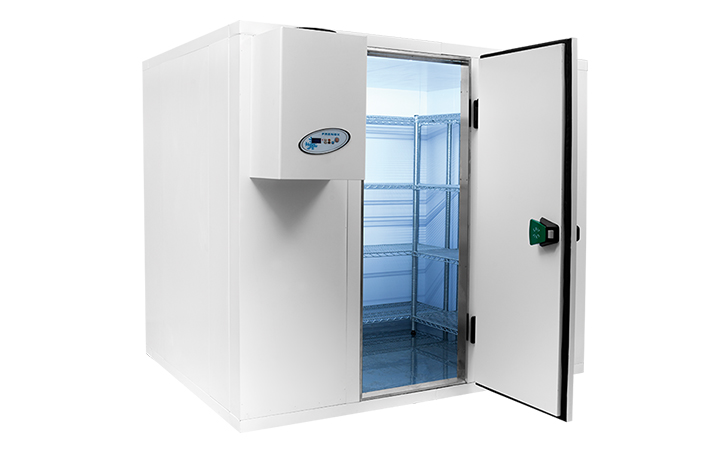

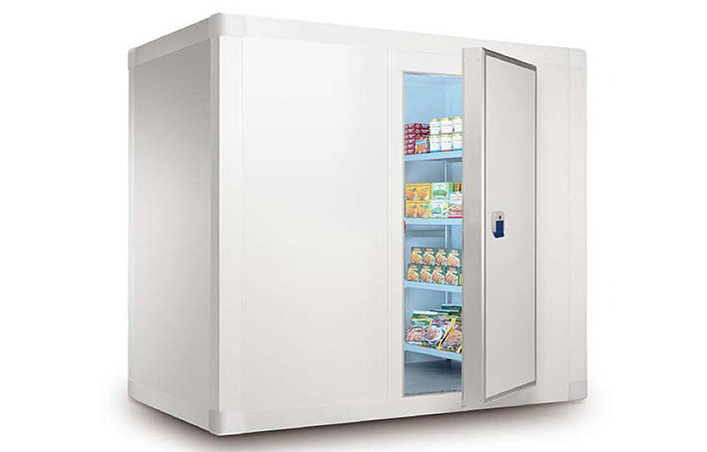

Prefabricated cold room

Description:

We can supply different types of cold room with different size for different application, our professional engineer and designer will customize based on clieents' information and requirement. Different materials and equipments can be suggested as customers' purpose and budget, try to give you the and  suitable plan!

inquire Now
Product Information


The cold room, also called cool room, cold storage house or freezer room, it can be widely used for food industry, hotels, medicine, agriculture, chemical and some other industries, which has strict requirement for the temperature and environment. Such as agricultural product processing and storage, hotels, supermarket, blood banks, poultry slaughter and processing, aquaculture and processing, mushroom cultivation, dairy production, pharmaceutical processing and logistics, beverage production and processing, beer production and cooling, large-scale logistics storage, chemical product cooling and so on.


Specification

Voltage(V): 380V/50Hz, 380V/60Hz, 220V/50Hz, 220V/60Hz optional

Cooling model: Air cooled / water cooled / evaporation cooled

Compressor: American Copeland, Germany Bitzer, Italy Refcomp etc

Dimension(M): Room size(L*W*H) can be customized

Panel Material: PU panel, 42 kg/m3 density

Panel Thickness: 75mm, 100mm, 150mm, etc

Steel Plate Thickness: 0.5mm/0.6mm

Cold Room Doors: Hinged door, Sliding door, double swing door etc

Cold Room Door Size: 0.8*1.8 meters, door size can be customized

Temp Controller: Thermostat

Defrost Type: Electric defrosting

Capacity: 3CBM~5000CBM

Applications: Storage Meat, vegetable, Food, Fish, fruits, medicine, chemical etc



Panel Suggested

Official foam panel: 50mm thickness

Processing room 10℃: 50mm/75mm PU

5℃: 75mm/100mm PU

-18℃: 100mm/150mm PU

-25℃/-35℃: 150mm/200mm PU

Panel steel cover: SS, GI, aluminium etc



Temperature table for reference

Processing room: 10℃

Fruit, vegetable, dry good: 0℃~-5℃

Medicine, cake, pastry, chemical material: 0℃~-5℃

Ice storage room: -5℃~-10℃

Fish, meat storage: -18℃~-25℃

Deep freezer: -25℃~-35℃

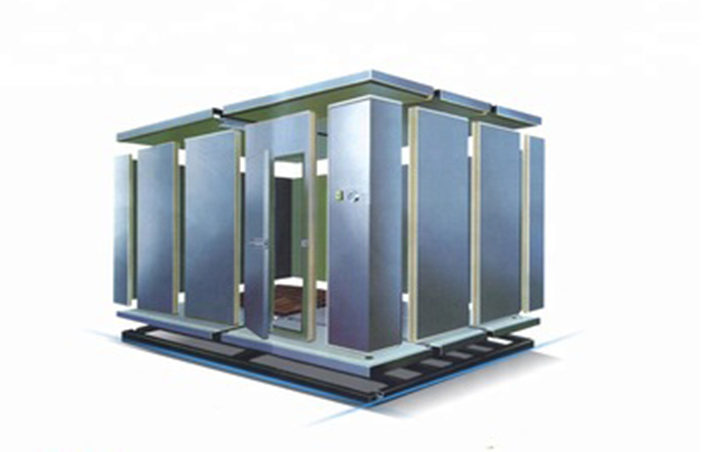

Cold Room Panel

Optional 1:

PU sandwich panel is composed of 2 layers of weather-proof colored steel sheets and jetted the hard forms of polyurethane between 2 layers which feature fireproof materials. It is suitable for the various roofs and walls referring to the large-size factory buildings, storage, exhibition halls, gymnasiums, freezing stores, purification workshop, etc, which features temp-keeping, heat insulation, weight-bearing, weatherproof with the rich colorfulness and good appearance.



Option 2:

Cam lock PU panel joined together by means of tongue and groove and locked together by cam- lock on each side of the panel to ensure air tight joints. There’s no need of rivets, thus reduce the cost and save the time. It has good performance in self-locking, strength and service life.
