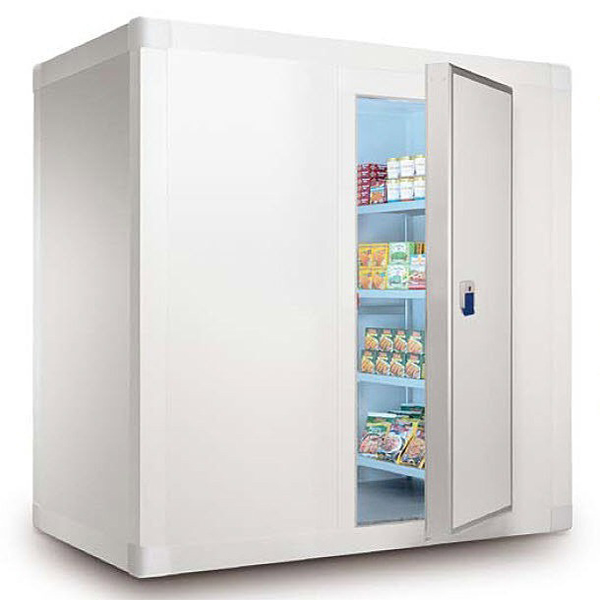

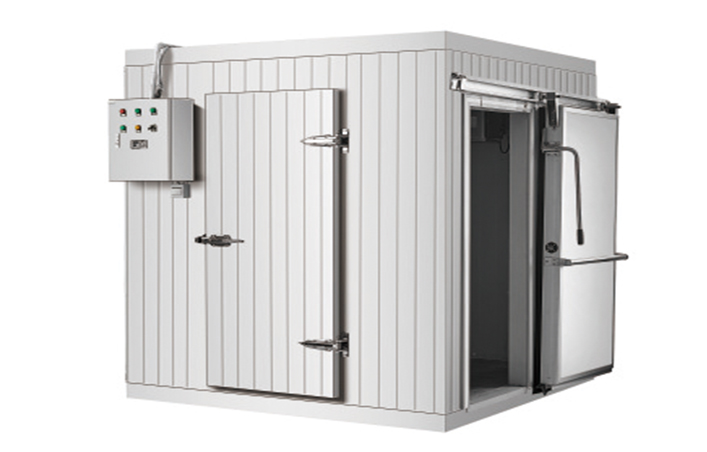

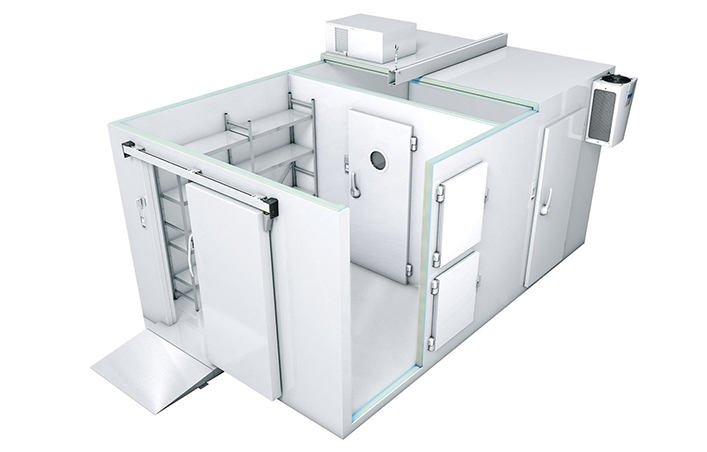

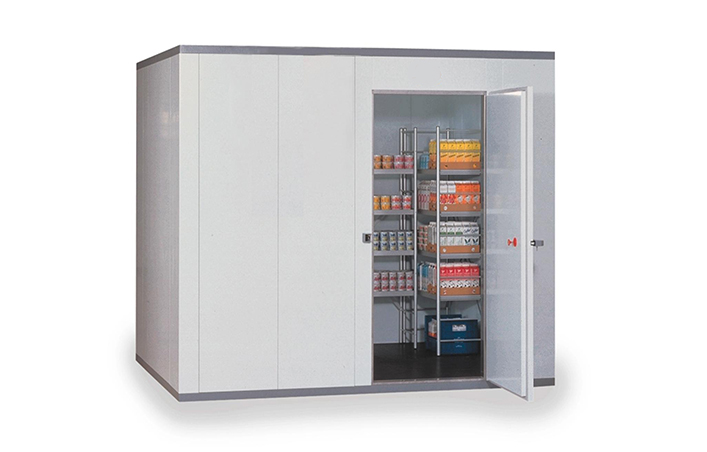

Walk-in Cold Storage Refrigeration Room

Description:

Cold storage is a construction where reaching the required temperature, which used for goods storage, processing, by artificial refrigeration in a certain space. Polyurethane insulation panel is made by high-pressure foaming mold, the temperature can be adjusted between 20℃ to -60℃.

inquire Now
Product Information


It can be widely used for food industry, hotels, medicine, agriculture, chemical and some other industries, which has strict requirement for the temperature and environment, such as agricultural product processing and storage, hotels, supermarket, blood banks, poultry slaughter and processing, aquaculture and processing, mushroom cultivation, dairy production, pharmaceutical processing and logistics, beverage production and processing, beer production and cooling, large-scale logistics storage, chemical product cooling and so on.



Specification

Voltage(V): 380V/50Hz, 380V/60Hz, 220V/50Hz, 220V/60Hz optional

Cooling model: Air cooled / water cooled / evaporation cooled

Compressor: American Copeland, Germany Bitzer, Italy Refcomp etc

Dimension(M): Room size(L*W*H) can be customized

Panel Material: PU panel, 42 kg/m3 density

Panel Thickness: 75mm, 100mm, 150mm, etc

Steel Plate Thickness: 0.5mm/0.6mm

Cold Room Doors: Hinged door, Sliding door, double swing door etc

Cold Room Door: Size0.8*1.8 meters, door size can be customized

Temp Controller: Thermostat

Defrost Type: Electric defrosting

Capacity: 3CBM~5000CBM

Applications: Storage Meat, vegetable, Food, Fish, fruits, medicine, chemical etc




Panel Suggested

*Official foam panel: 50mm thickness

*Processing room: 10℃50mm/75mm PU

*5℃: 75mm/100mm PU

*-18℃: 100mm/150mm PU

*-25℃/-35℃: 150mm/200mm PU

*Panel steel cover: SS, GI, aluminium etc



Temperature table for reference

Processing room: 10℃

Fruit, vegetable, dry good: 0℃~-5℃

Medicine, cake, pastry, chemical material: 0℃~-5℃

Ice storage room: -5℃~-10℃

Fish, meat storage: -18℃~-25℃

Deep freezer: -25℃~-35℃
