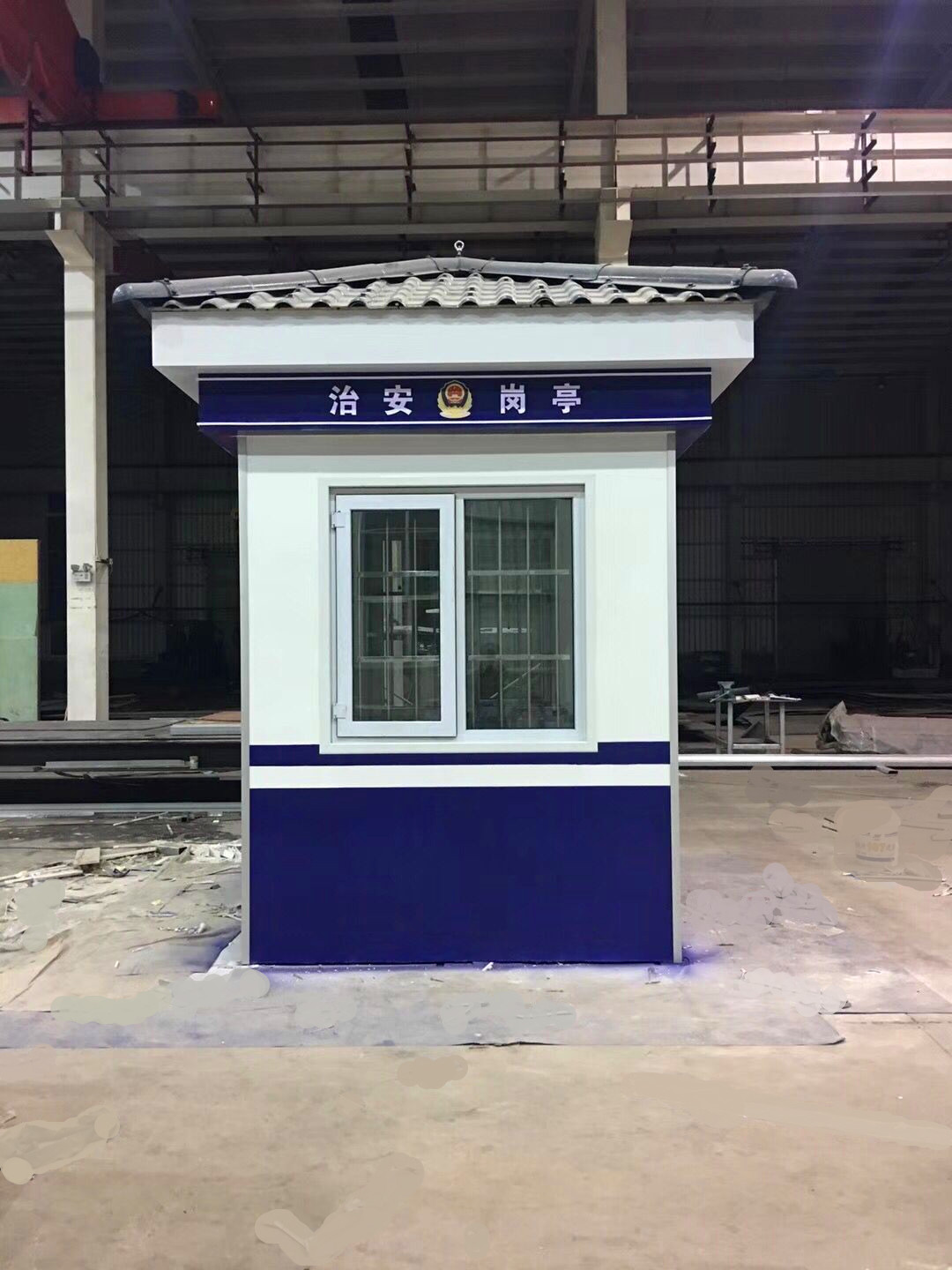

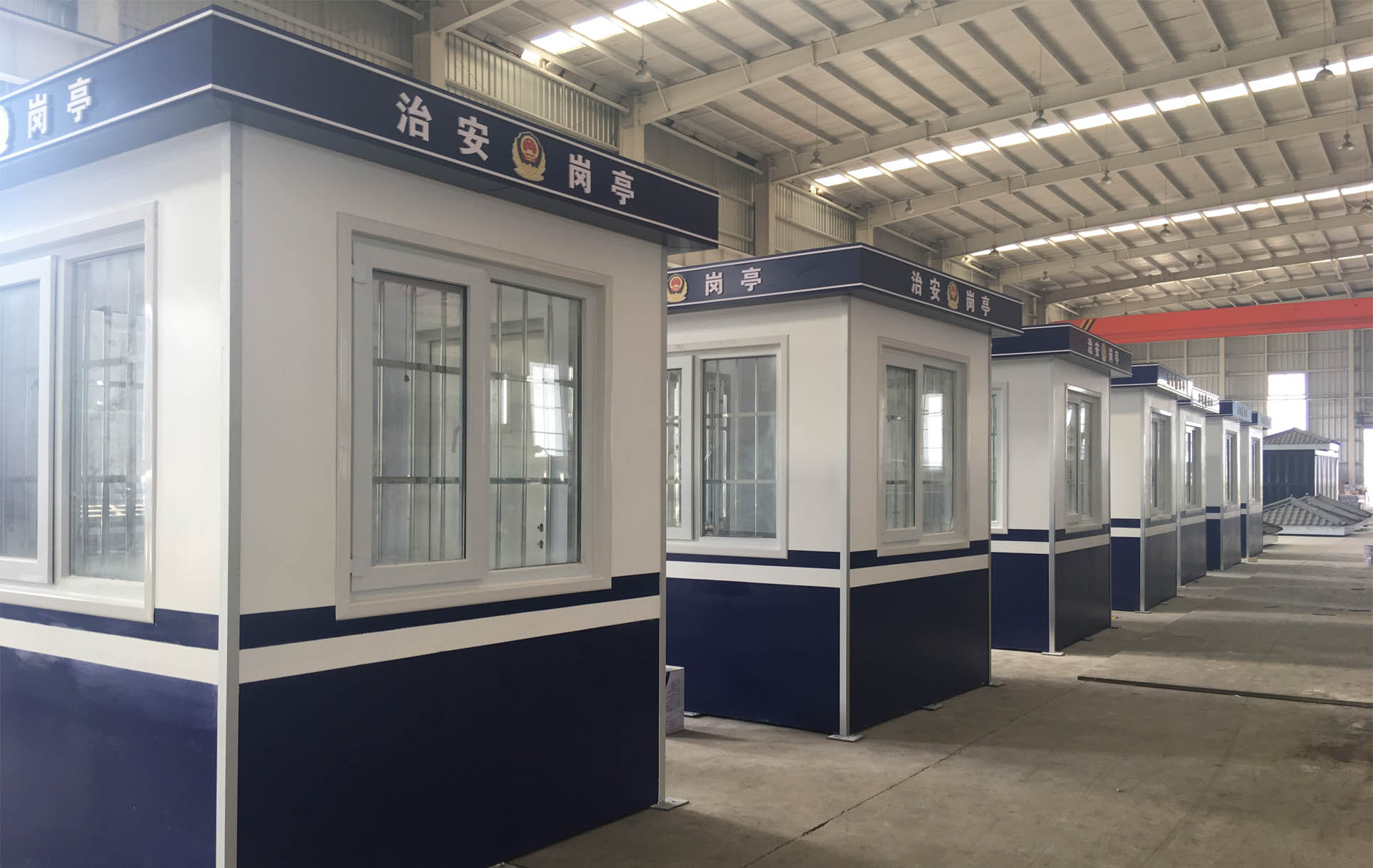

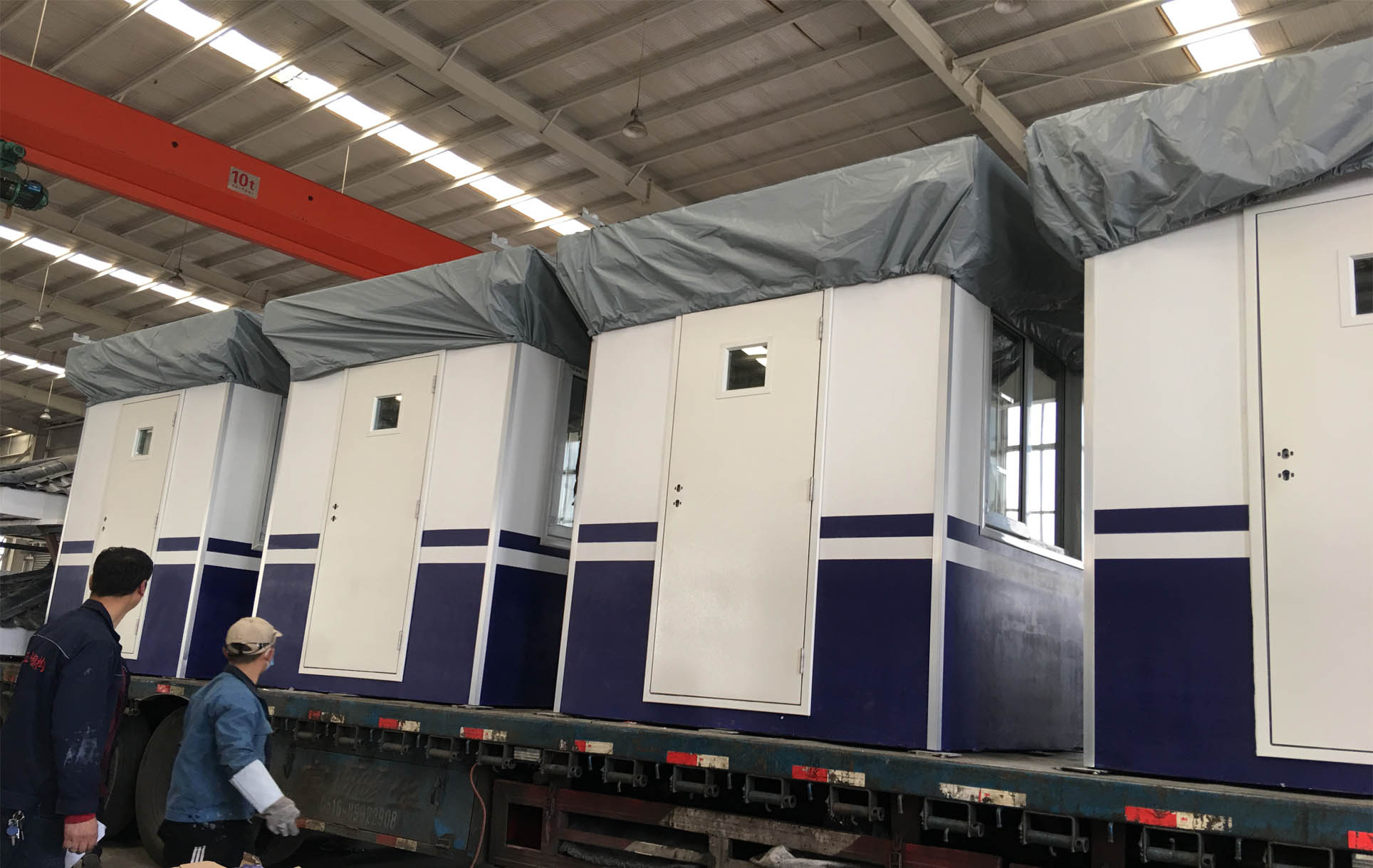

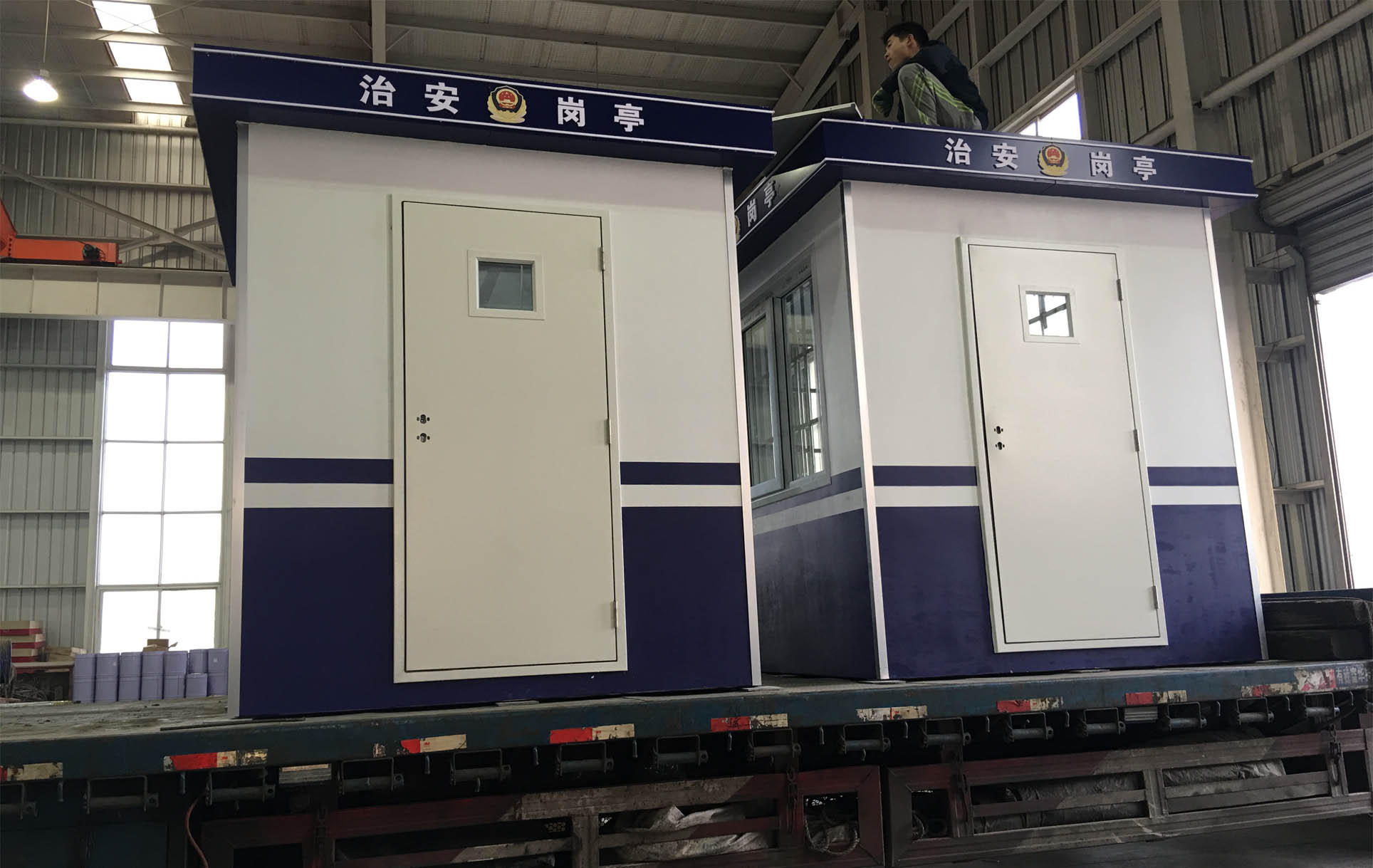

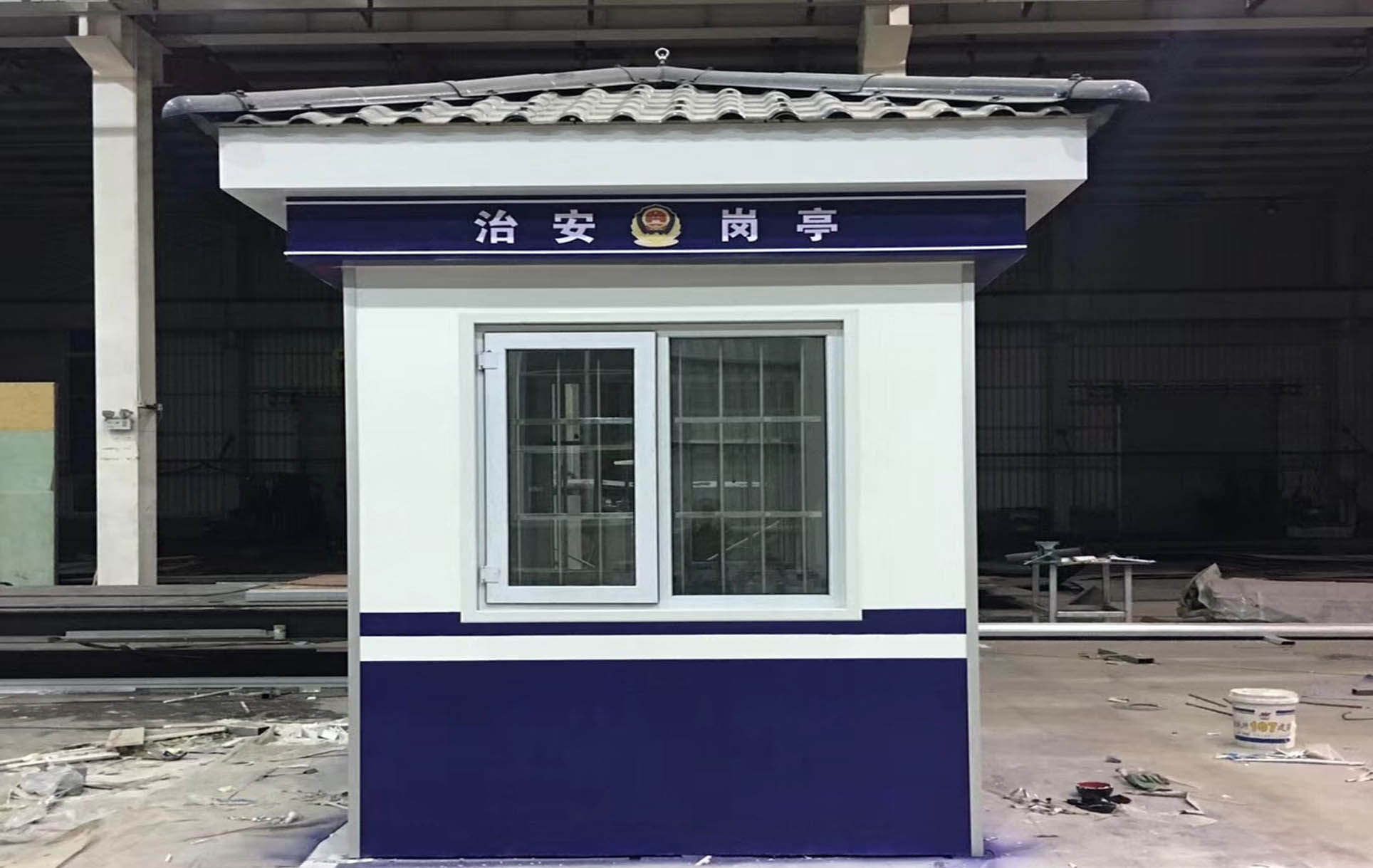

Light steel sentry box

Description:

Light gauge steel framing sentry box

inquire Now
Product Information





Sentry booth introduction

A sentry booth is a small shelter with or without an open front in which a guards duty may need to stand to be sheltered from the weather.

An armored booth, armored guardhouse, or security booth is a small structure furnished with a chair, and security cameras.


The guards often sit inside of the structure, which has strong windows, doors, and walls. Such booths are generally found at embassies, important government buildings and structures, military installations, and high end hotels in some countries.

Sentry booth is also belong to prefab house in small size


1• Cost effective and quick to build

2• Strong and design-flexible

3• Durable and safe

4• Easy to assemble and transportation

5• Environmentally Friendly



TECHNICAL PARAMATERS

WIND RESISTANCE: 2.1KN/M2

EARTHQUAKE RESISTANCE: 9 DEGREE

SNOW LOAD: 1.5KN/M2

ROOF DEAD LOAD: 0.6KN/M2

ROOF LIVE LOAD: 0.6KN/M2

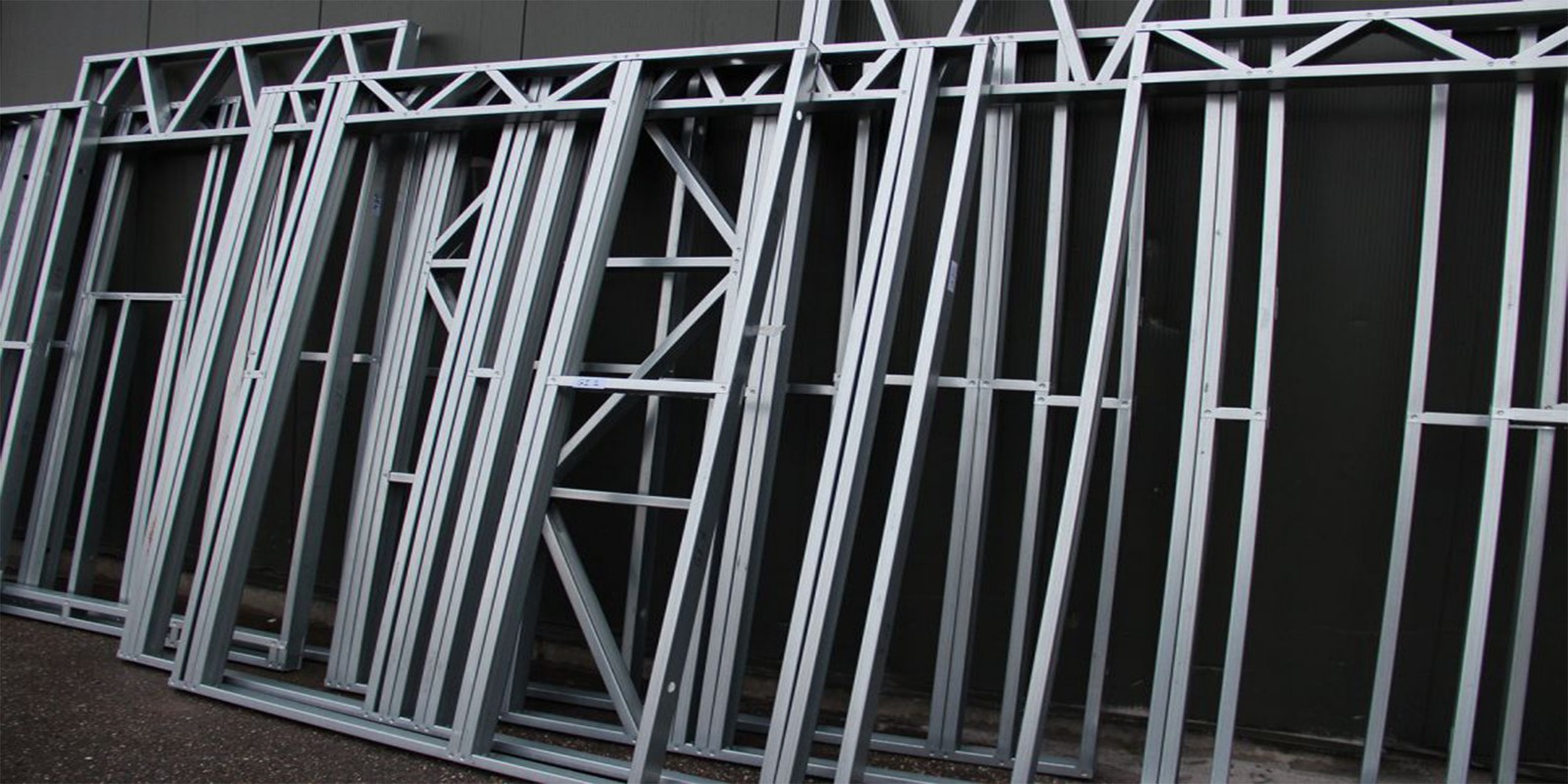

STEEL STRUCTURE PART

STEEL COLUMNZIN COATING: 275G/M2 LIGHT STEEL TRUSS

STEEL FOUNDATIONZIN COATING: 275G/M2 LIGHT STEEL TRUSS

ROOF FRAMEZIN COATING: 275G/M2 LIGHT STEEL TRUSS

ENCIRCLEMENT PART

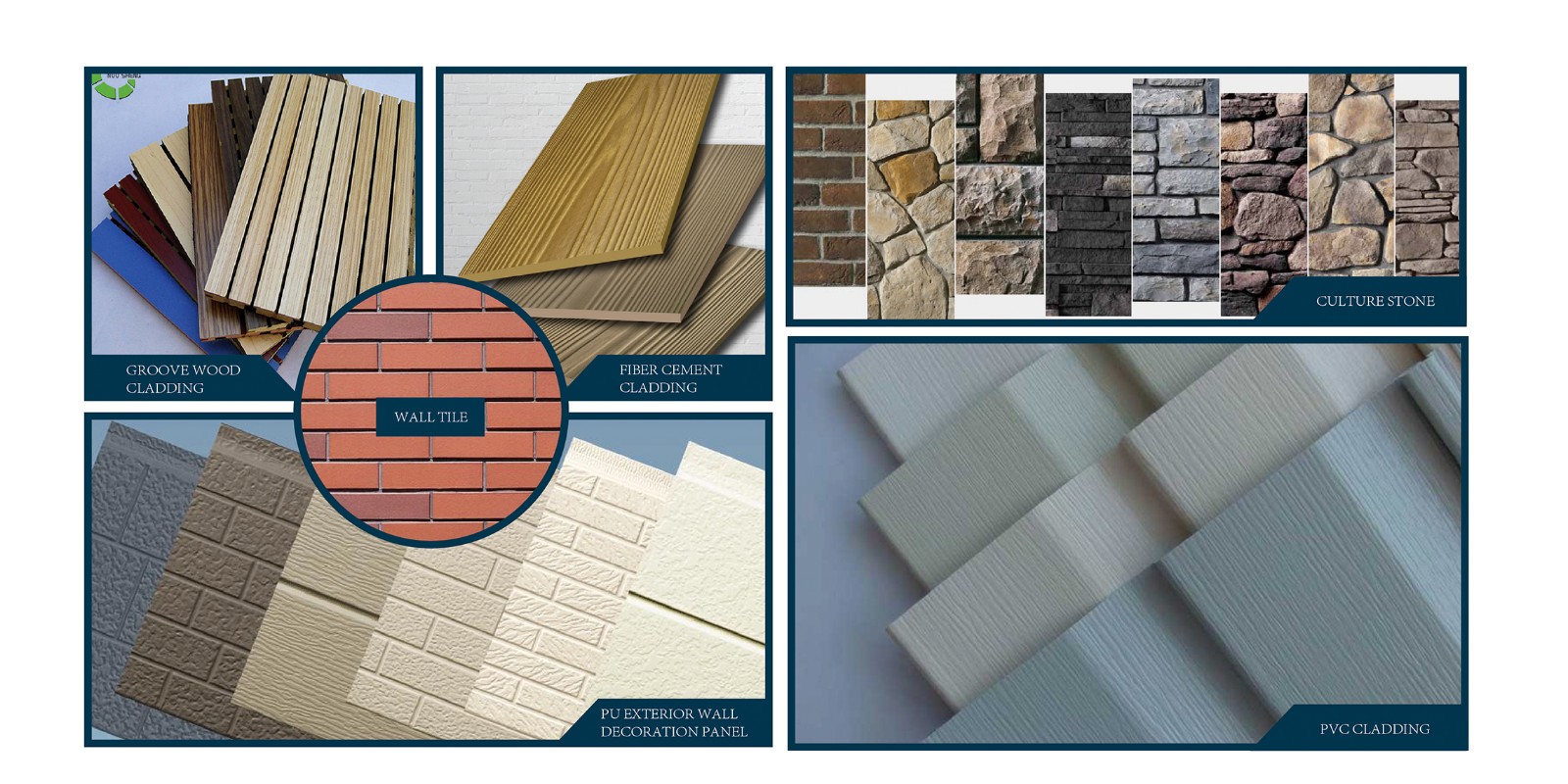

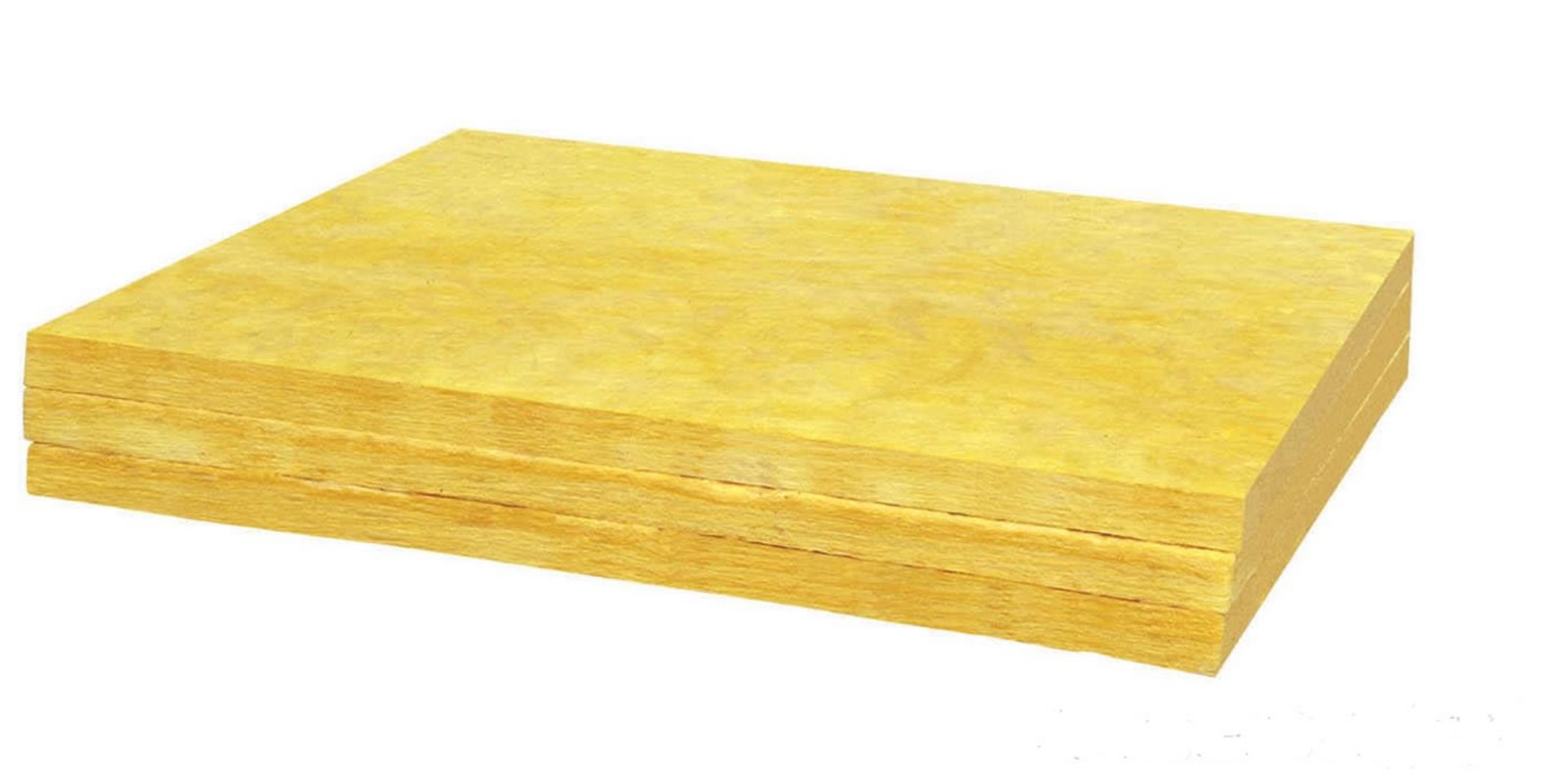

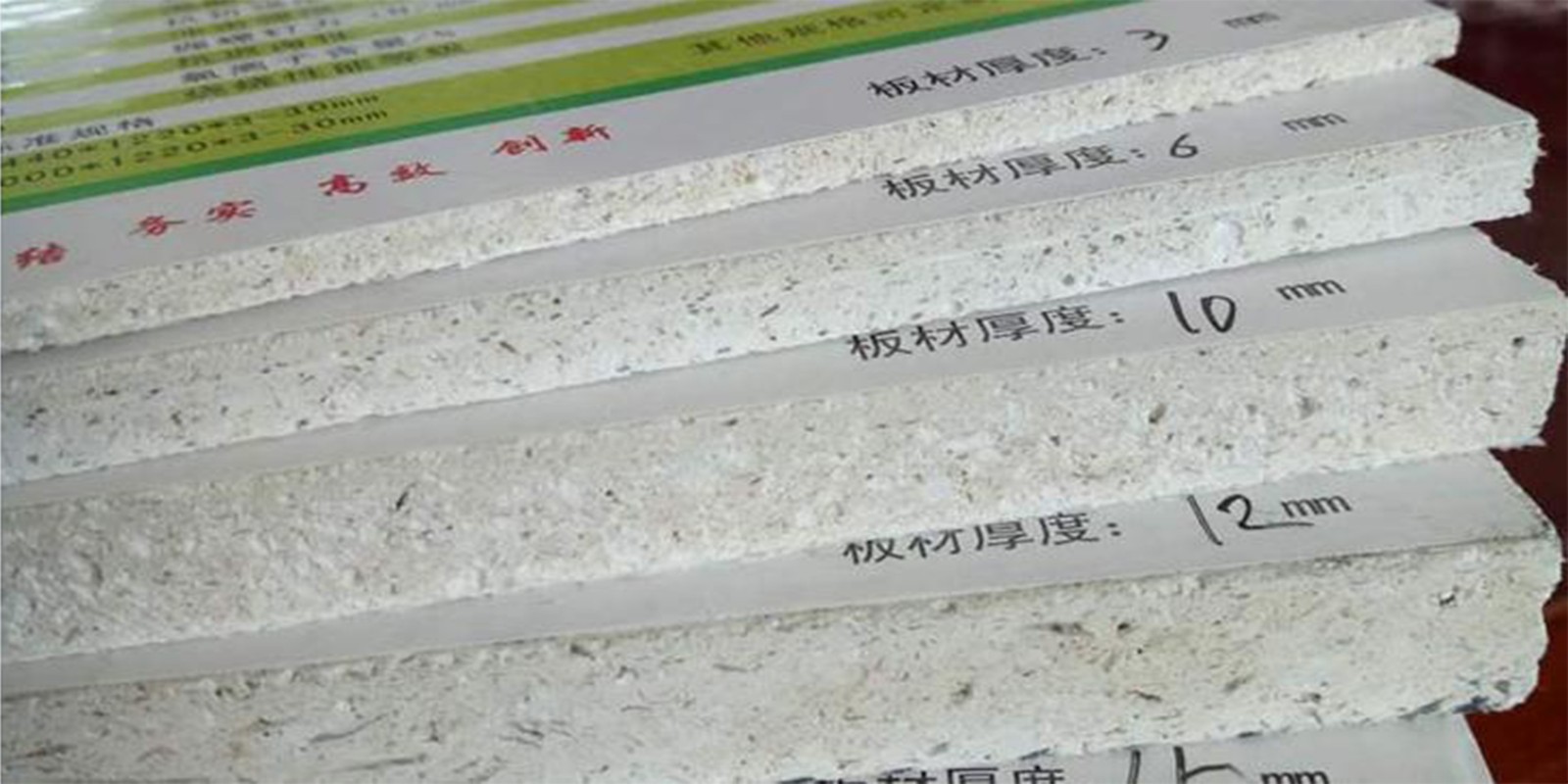

WALLEPS: CEMEMNT PANEL, EPS/ROCK WOOL/PU /GLASS WOOL SANDWICH PANEL

      WALL THICKNESS: 50-200MM     STEEL THICKNESS: 0.8-1.0MM

CELLINGEPS: CEMEMNT PANEL,EPS/ROCK WOOL/PU /GLASS WOOL SANDWICH

      PANELTHICKNESS: 50-200MM

FLOOR: PLYWOOD/PVC LEATHER

      FLOORTHICKNESS: 50-200MM

DECORATION PART

FLOORING: 2MM PVC SHEET FLOORING/WOODEN FLOORING /CERAMIC TILE

INNER WAINSCOT: 9MM MDF DECORATION PANEL DECORATIVE WITH WALL PAPER OR PVC

CELLING: GYPSUM, SANDWICH PANEL, SINGLE STEEL SHEET OR PVC BOARD

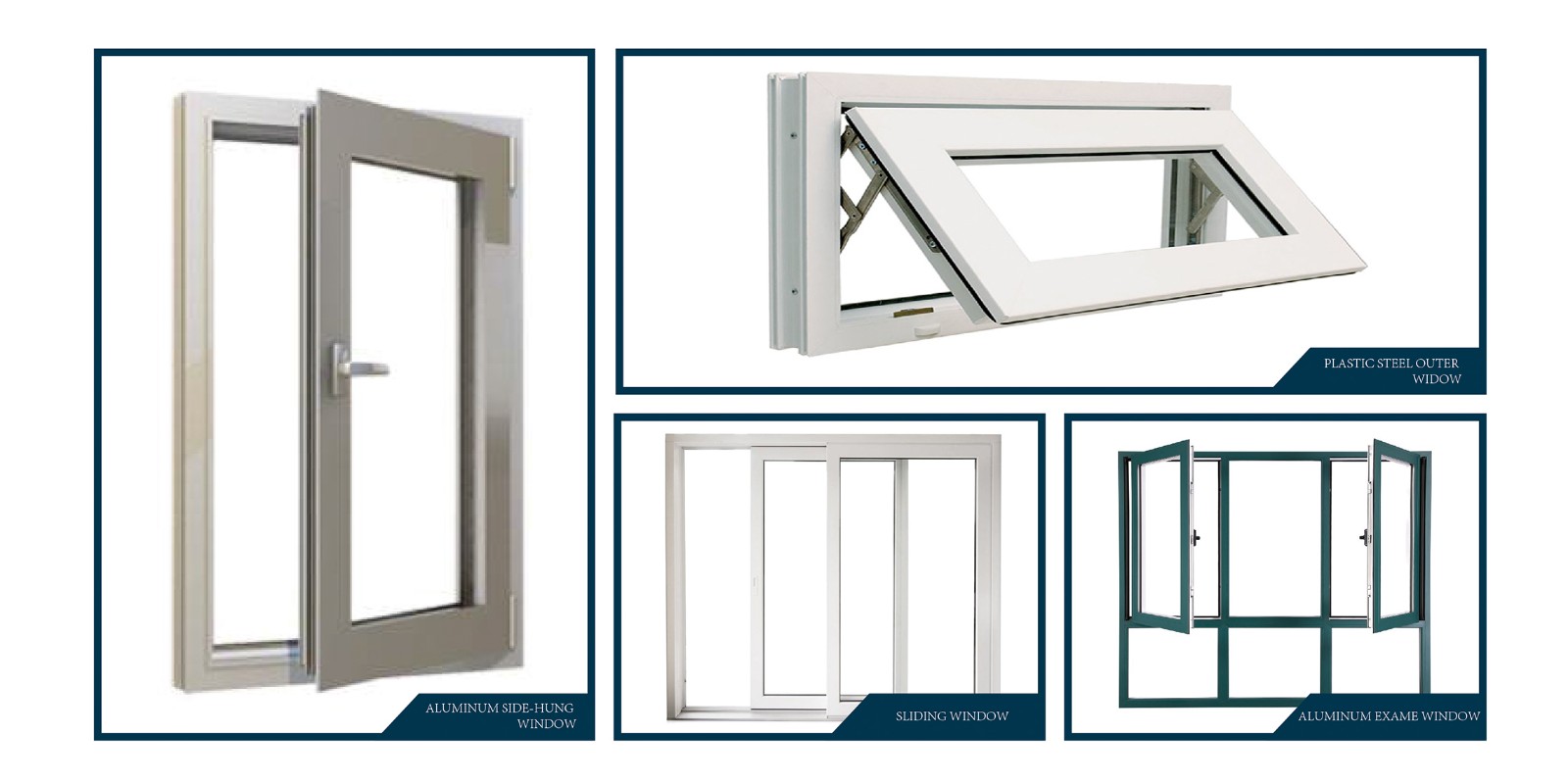

WINDOW: PVC/ALUMINUM SHUTTER WITH FLY SCREEN AND GRILL GUARD

DOOR: ENTRANCE DOOR, STEEL SECURITY DOOR, WITH LOCKAND KEYS, INNER DOOR, WOODEN MOLDED DOOR

OTHER DETAILS

ELECTRIC/DRAINAGE SYSTEM: PROVIDED PLAN, DESIGN AND CONSTRUCTION

APPLICATION: CARPOT, HOTEL, HOUSE, OFFICE, BOOTH, KIOSK, SHOP, TOILET, VILLA, WAREHOUSE, WORSHOP, PLANT

LIFE SPAN: OVER 50 YEARS

DELIVER TIME: 25DAYS AFTER RECEIPT OF DEPOSIT
